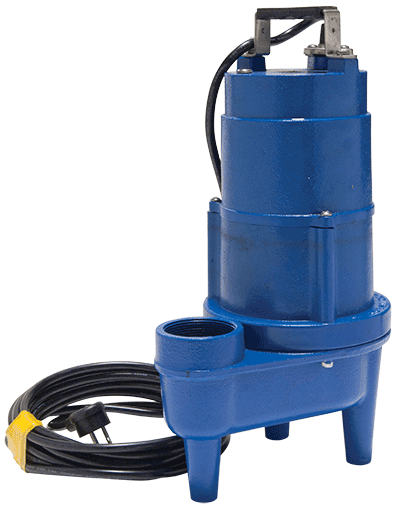

MP-S5 Effluent Pump
Features:
Piggy-back switch design. Pump can be operated manually by overriding the switch.
High efficient motor with upper and lower ball bearings. Runs cooler and lasts longer.
Cast Iron Vortex impeller, helps prevent clogging.
Sealed entry replaceable power cord. Easy to replace in the field. Prevents water from entering motor housing in the event of a cut power cord.
Applications:
Basements, Dewatering, Septic systems, Lift Stations, Truck Docks.
Specifications:
Discharge: 2" NPT. Vertical Standard
Solids: 2"
Liquid Temperature: 140ºF (Intermittent) 77ºF (Continuous)
Motor Housing: Cast Iron
Volute: Cast Iron
Seal Plate: Cast Iron
Impeller: Cast Iron, 10 vane Vortex, Dynamically Balanced
Shaft: Stainless Steel
Shaft Seal: Carbon - Ceramic, John Crane Type 21
Bearing(Upper & Lower): Single Row, Ball, Lubricated
Hardware: 300 Series, Stainless Steel
Square Rings: Buna-N
Cord: 20 Ft. (6mts. long with quick disconnect cord with plug for effective sealing)
Motor (Single Phase): 1/2HP, 3450 RPM, 60 Hz, Oil Filled, NEMA L includes motor overload protection, Permanent split capacitor, Class B.
Capacity: Up to 115 GPM
Shut Off Head: 25 Ft./10.83 PSI
Minimum Head: 5 Ft./2 PSI

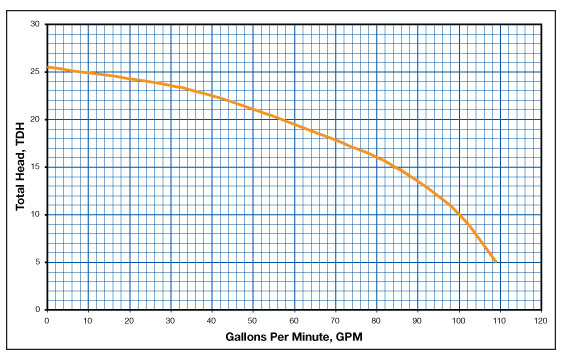

Performance Curve

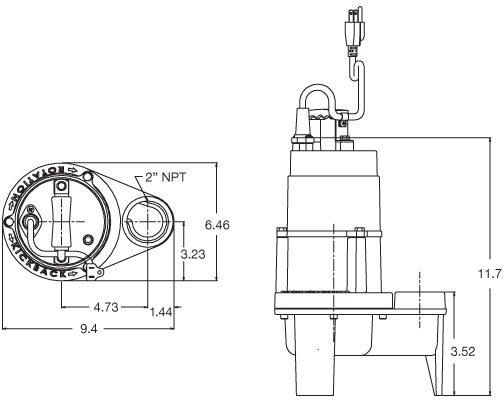

Dimensions
