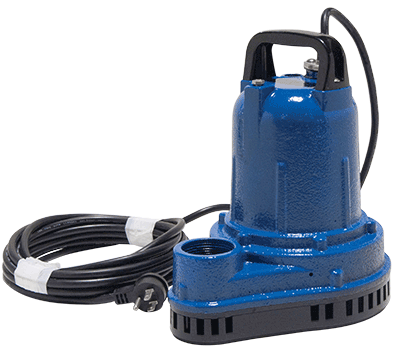

MP-3 Sump/Effluent Pump
Features:
Piggy-back switch design. Pump can be operated manually by overriding the switch.
High efficient motor with upper and lower ball bearings. Runs cooler and lasts longer.
Vortex impeller, helps prevent clogging.
Sealed entry replaceable power cord. Easy to replace in the field. Prevents water from entering motor housing in the event of a cut power cord.
Applications:
Basements, Dewatering, Septic systems, Decorative ponds.
Specifications:
Discharge: 1-1/2" NPT. Vertical
Solids: 1/4"
Liquid Temperature: 140ºF (Intermittent) 77ºF (Continuous)
Motor Housing: Cast Iron
Volute: Cast Iron
Seal Plate: Cast Iron
Impeller: Nylon + 30% Fiberglass
Shaft: Nickel Plated Steel
Shaft Seal: Carbon - Ceramic, John Crane Type 21
Bearing(Upper & Lower): Single Row, Ball, Lubricated
Hardware: 300 Series, Stainless Steel
Square Rings: Buna-N
Cord Entry: Compression Grommet - Outer Jacket Seal, Quick disconnect pin terminals
Motor (Single Phase): 1/3HP, 1750 RPM, 60 Hz, Oil Filled, NEMA L includes motor overload protection, Permanent split capacitor.
Capacity: Up to 43 GPM
Shut Off Head: 20 Ft.
Minimum Head: 5 Ft.

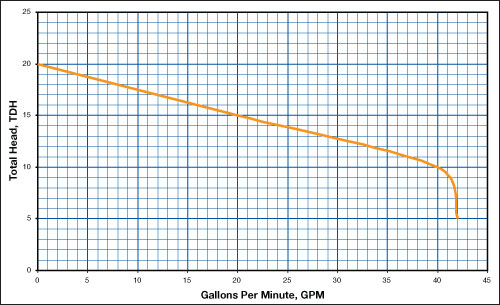

Performance Curve

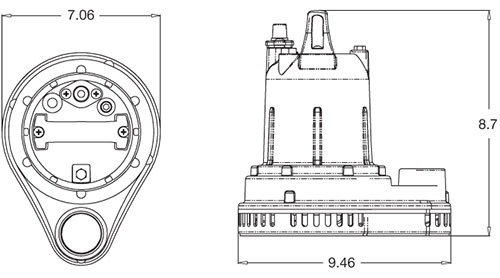

Dimensions
